◆ Application

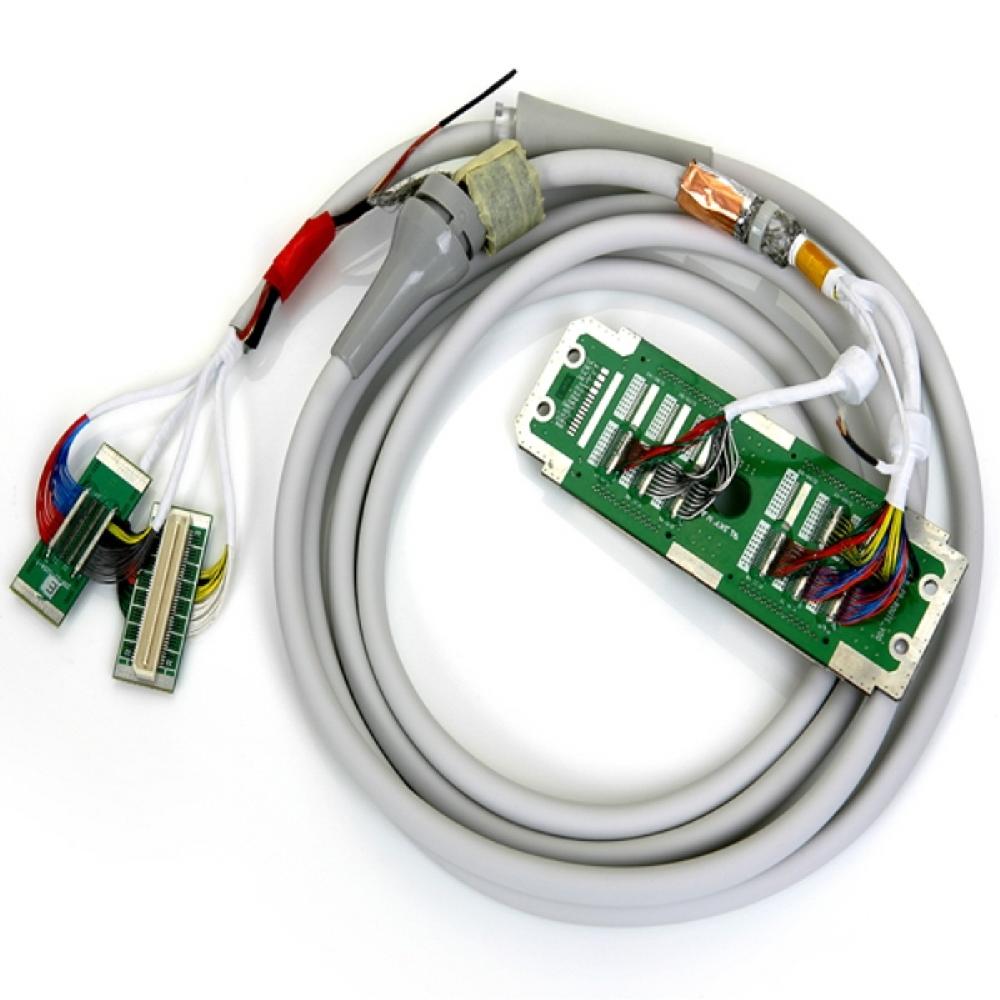

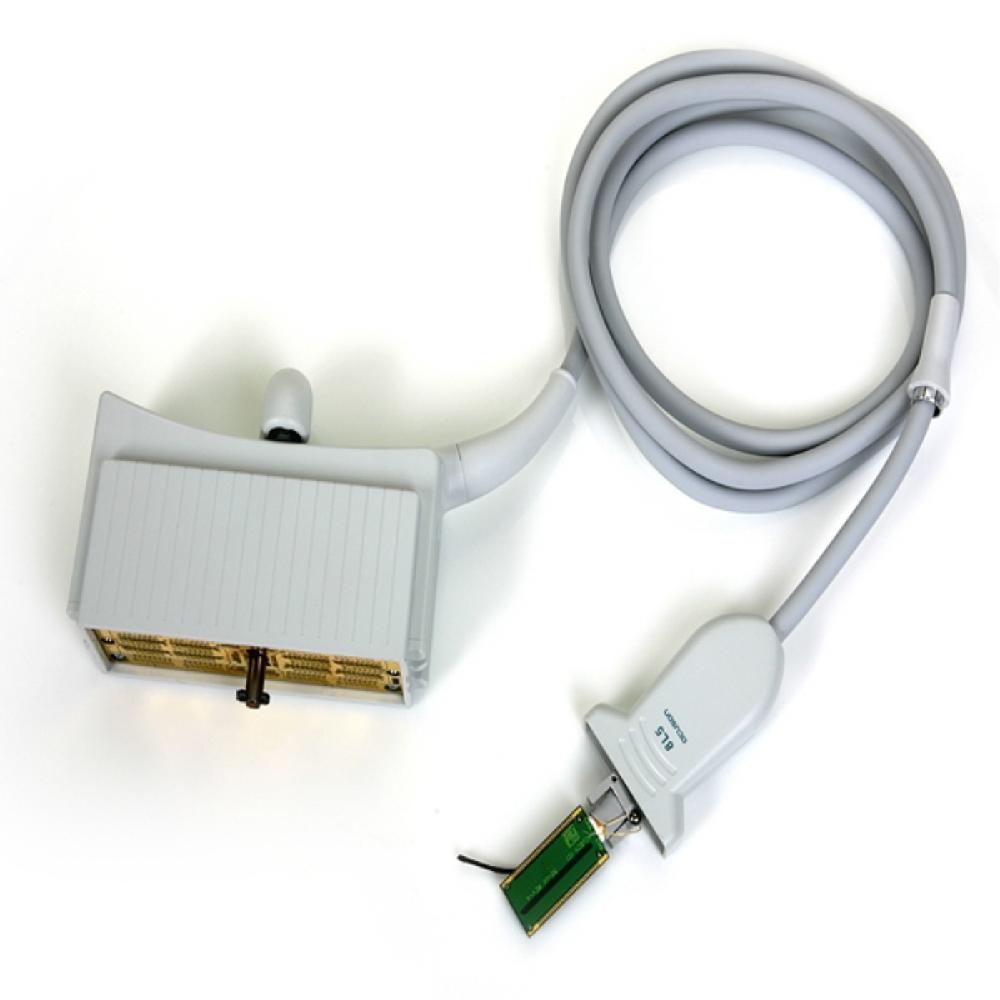

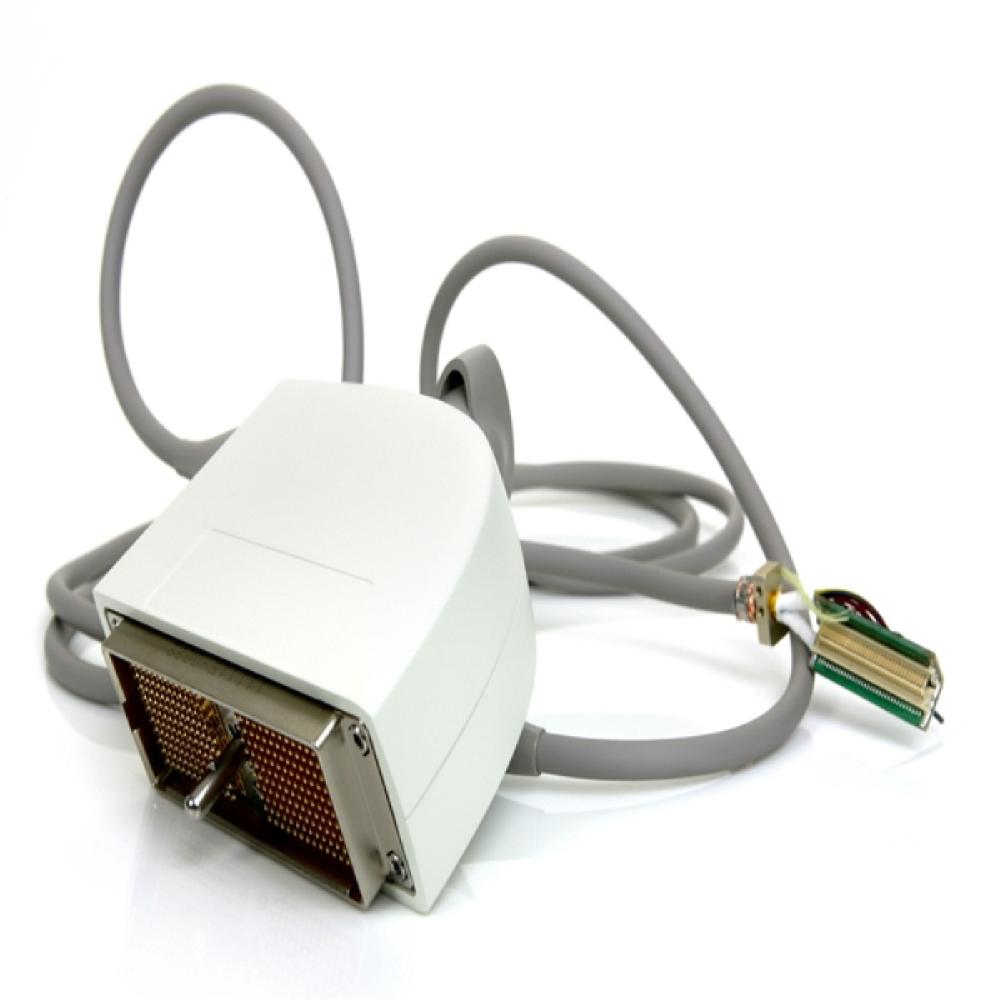

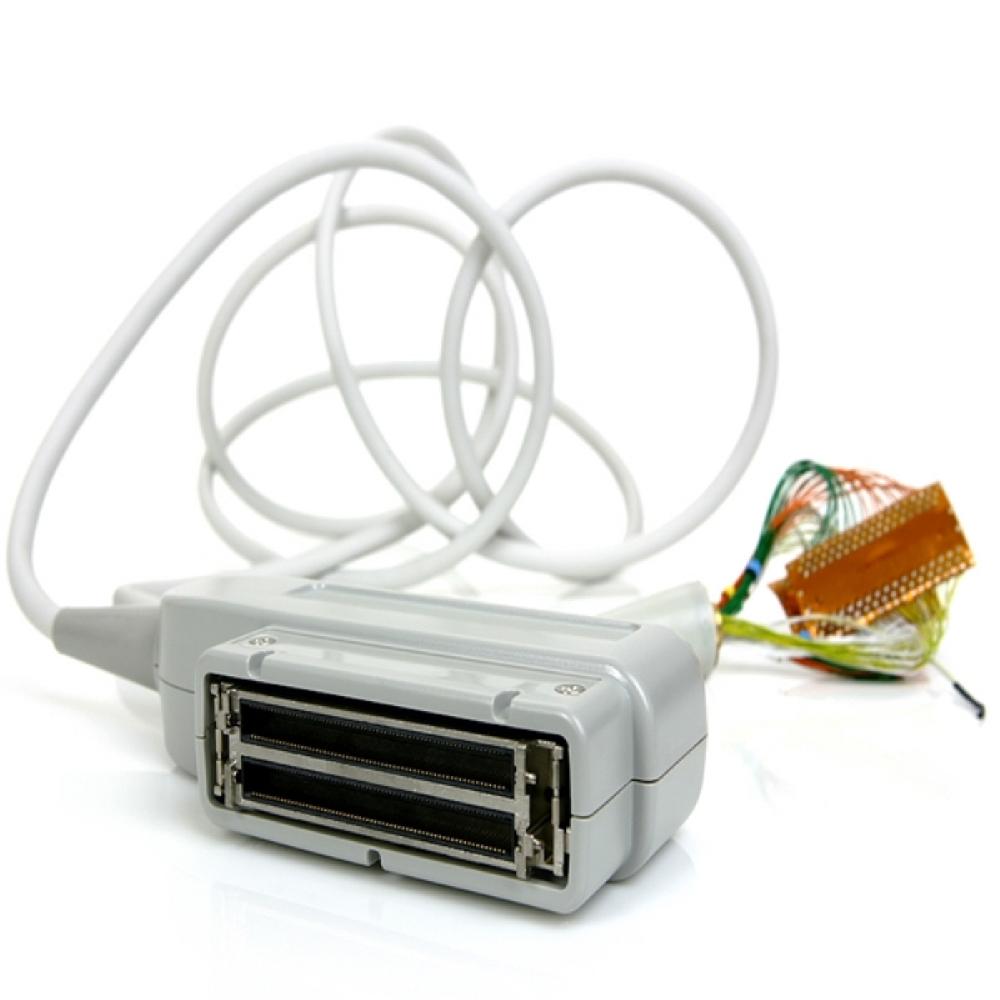

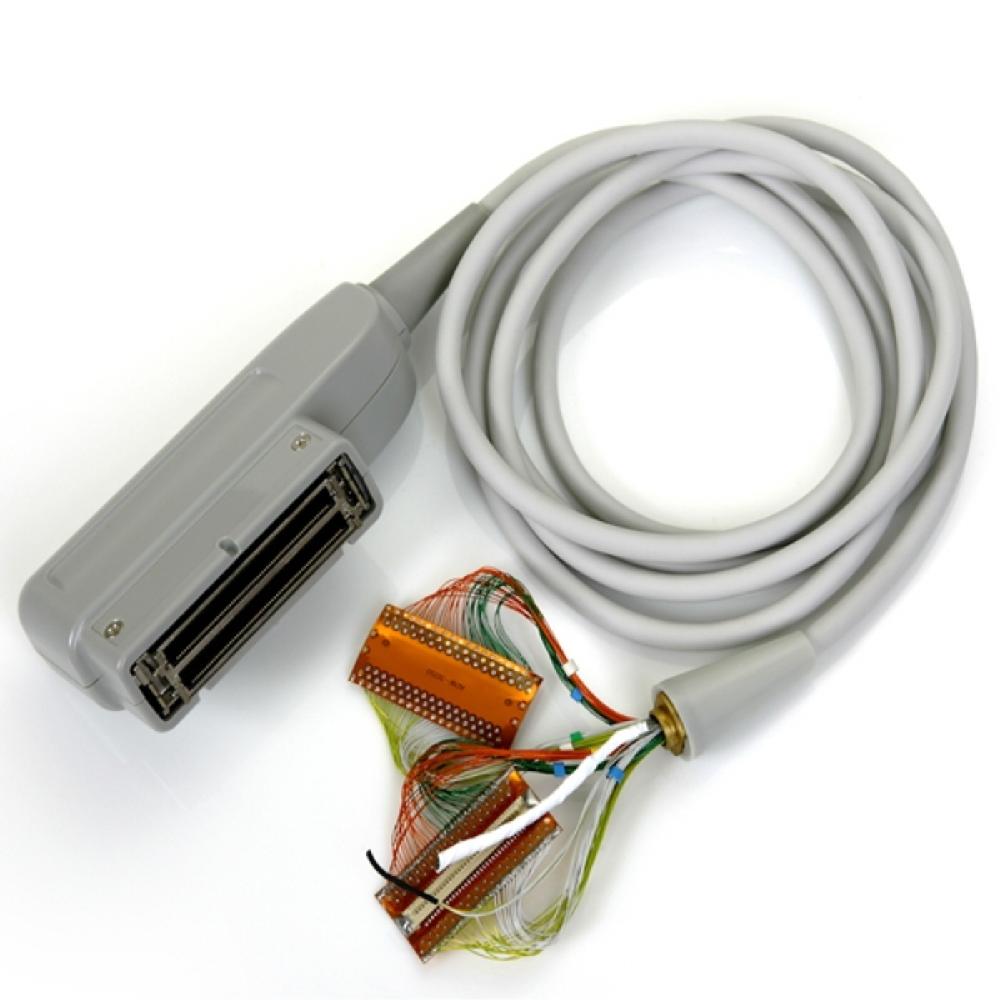

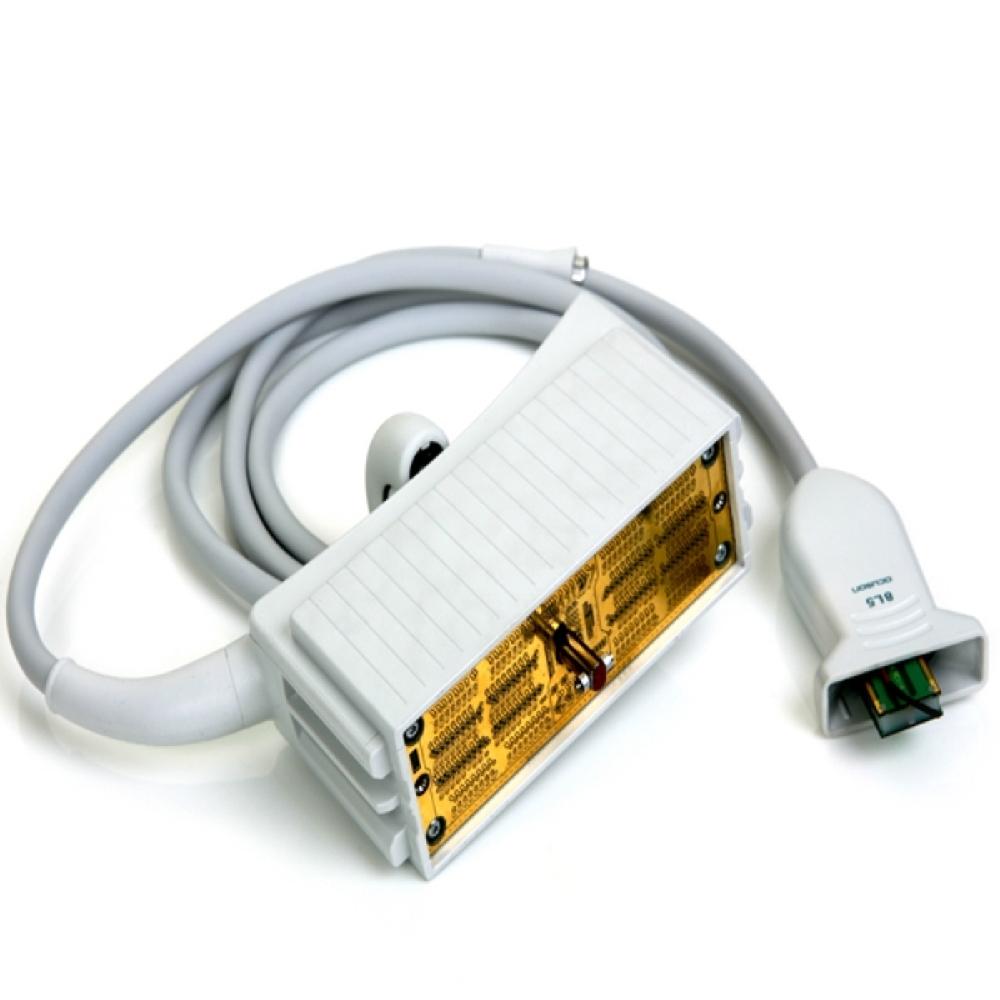

Ultrasound System Probe Cable Assemblies for the Linear, Convex, Phased, Vaginal type Transducer up to 500 Channels, and general 2D Probe as well as specialized 3D and 4D types.

*Types of Ultrasound Probe Transducer

- Linear type : Vascular, Musculoskeletal, Small Parts

- Convex type : Abdominal, Obstetrics and Gynecology

- Phased type : Cardiac, Abdominal, Pediatric

- Vaginal type : Obstetrics and Gynecology, Urology

◆ Features
1. Micro Coaxial Cable for Probe with impedance matching for each type of Transducer
 2. Transmittable of electrical signals from low frequency including DC to the high frequency.
3. Advanced Micro Coaxial Cable with excellent flexural bending and flexible internal structure.
4. Capable of manufacturing with customized designs and requirements.

◆ Components (Raw Materials)

- Micro Coaxial Cable : AWG36~47, 50pF/m~110pF/m

 - ZIF(Zero Insertion Force) 156 ~ 480pin Connectors, Mini ZIF connector, QLC(Quad Lock Connector)

- Housing, Handle Case, Board, PWB
